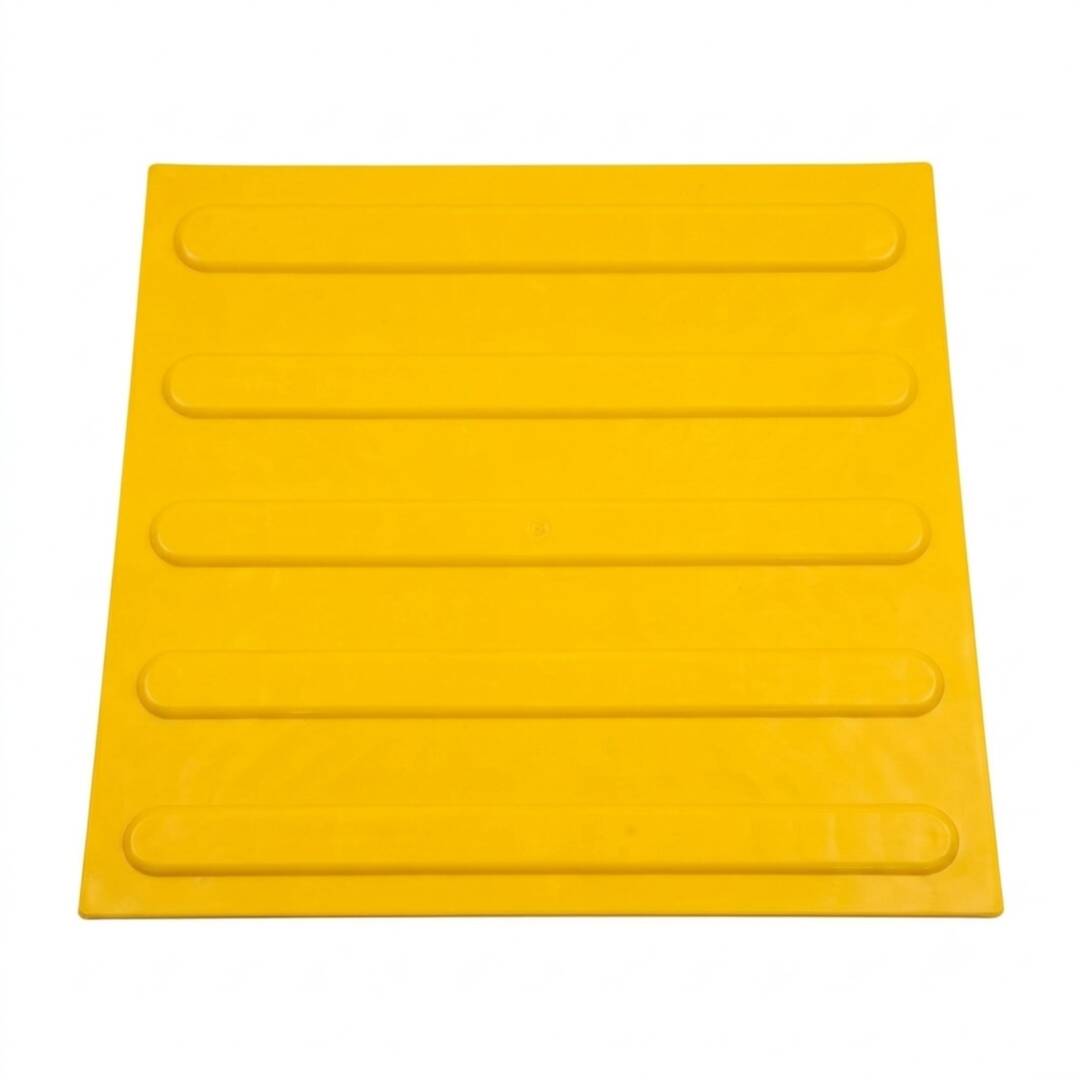

Tactile Guidance Tiles 40×40 cm TPU
Tactile guiding strips from the Tereno Eco series in 40×40 cm size provide safe pedestrian pathways. The linear directional profile with parallel ribs guides visually impaired persons accurately. It clearly indicates direction in open urban areas, building entrances, and transport hubs.
Price: €6.90 / pc excl. VAT
For complete hazard demarcation before stairs, combine the route with tactile warning paving tiles.
Key Advantages of Tactile Guiding Strips
- Optimal Size: The 40×40 cm format provides a wider, stable guide path. It is easily recognized with a cane or underfoot.
- Directional Profile: Precisely designed parallel lines guarantee accurate travel without course deviations.
- Premium TPU Material: Highly durable thermoplastic polyurethane does not degrade under snow, rain, or intense sunlight.
- Vibrant Visual Contrast: High-contrast yellow assists pedestrians with low vision to navigate outdoors.
- Industrial Strength: Built to withstand heavy pedestrian traffic and light sweepers without detachment.
- Certified Standards: Meets accessible environment norms and undergoes testing per international standard ISO 23599:2019, with compliance confirmed by laboratory tests. Manufactured under a management system certified to ISO 9001:2015 and ISO 14001:2015
Technical Specifications
- Material: High-grade TPU (Thermoplastic Polyurethane). Combines plastic rigidity with rubber elasticity for maximum wear resistance.
- Dimensions: 400 x 400 mm.
- Surface Profile: Raised parallel directional ribs for guidance and information.
- Thickness: 3 mm base tile + 5 mm raised tactile ribs.
- Coverage: 6.25 tiles per 1 m².
- Color Options: Traffic Yellow (RAL 1023) for contrast. Graphite, black, or custom colors on request.
- Resistance: UV protection, antibacterial surface, thermal resistance from -40°C to +80°C.
- Adhesive System: Secured permanently with two-component polyurethane adhesive for strong adhesion.
- Compliance: Meets accessible environment norms and undergoes testing per international standardISO 23599:2019, with compliance confirmed by laboratory tests. Manufactured under a management system certified to ISO 9001:2015 and ISO 14001:2015
- Price: €6.90 / pc excl. VAT.
- Installation Adhesive: Two-component polyurethane adhesive (consumption 1.2 – 1.5 kg/m²): €3.32 / kg.
Note: Listed prices apply to standard stock colors. Contact us for custom architectural colors or bulk volume quotes.
