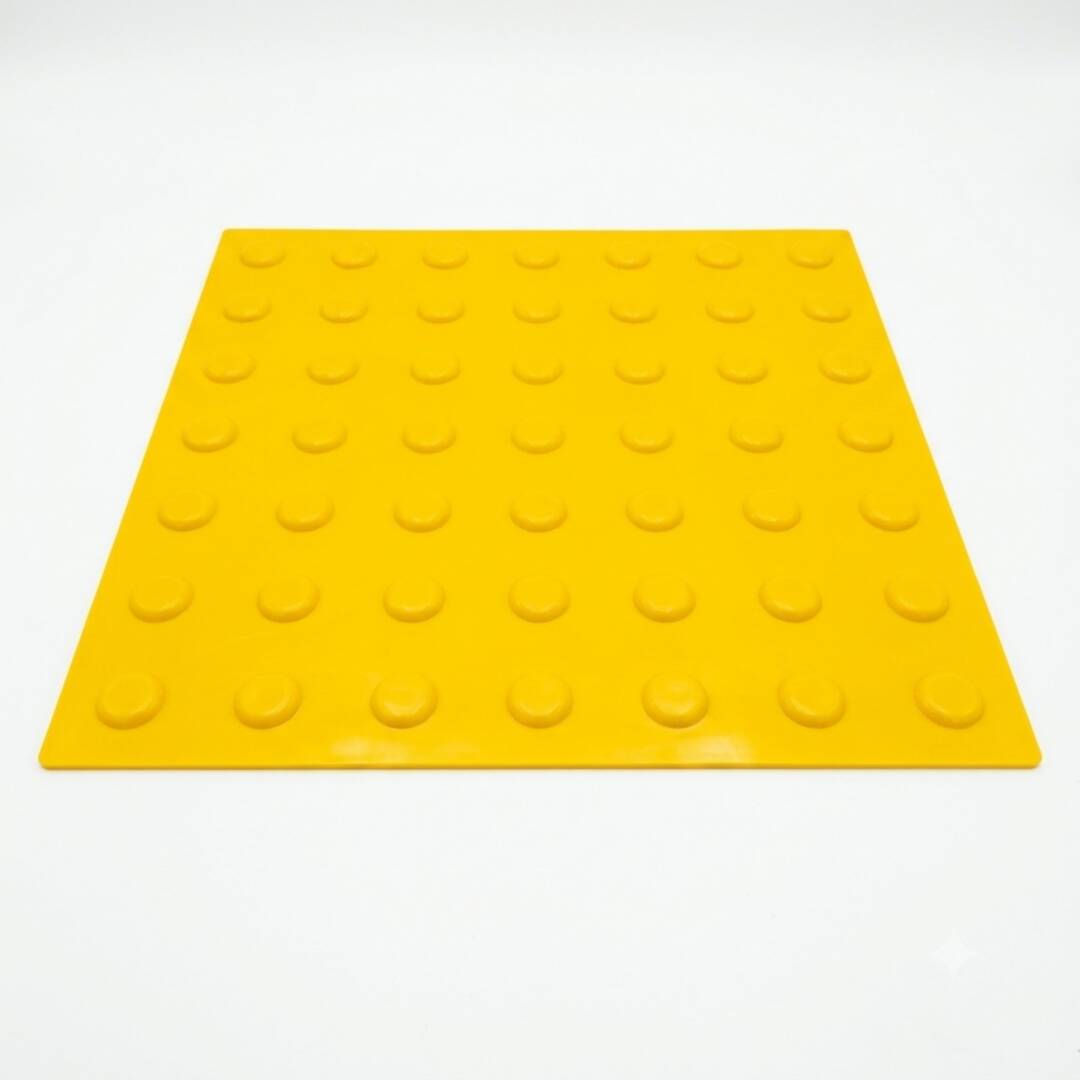

Tactile warning paving tile 40x40 cm, yellow TPU, with raised truncated domes

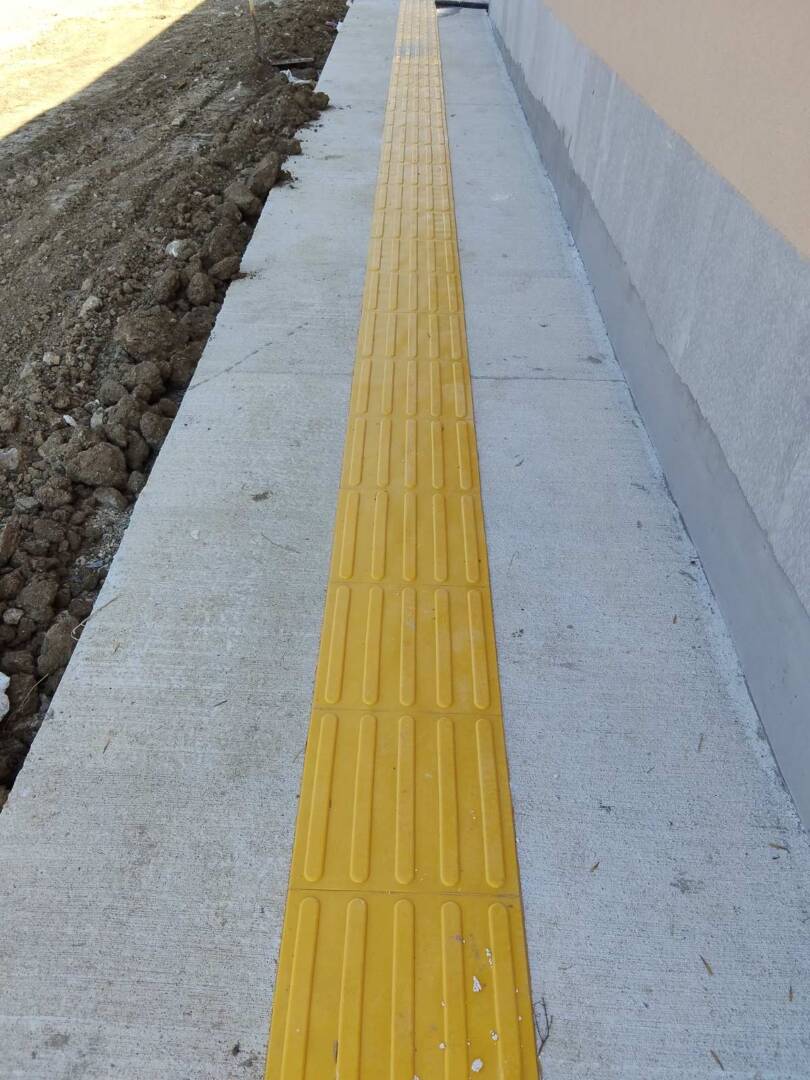

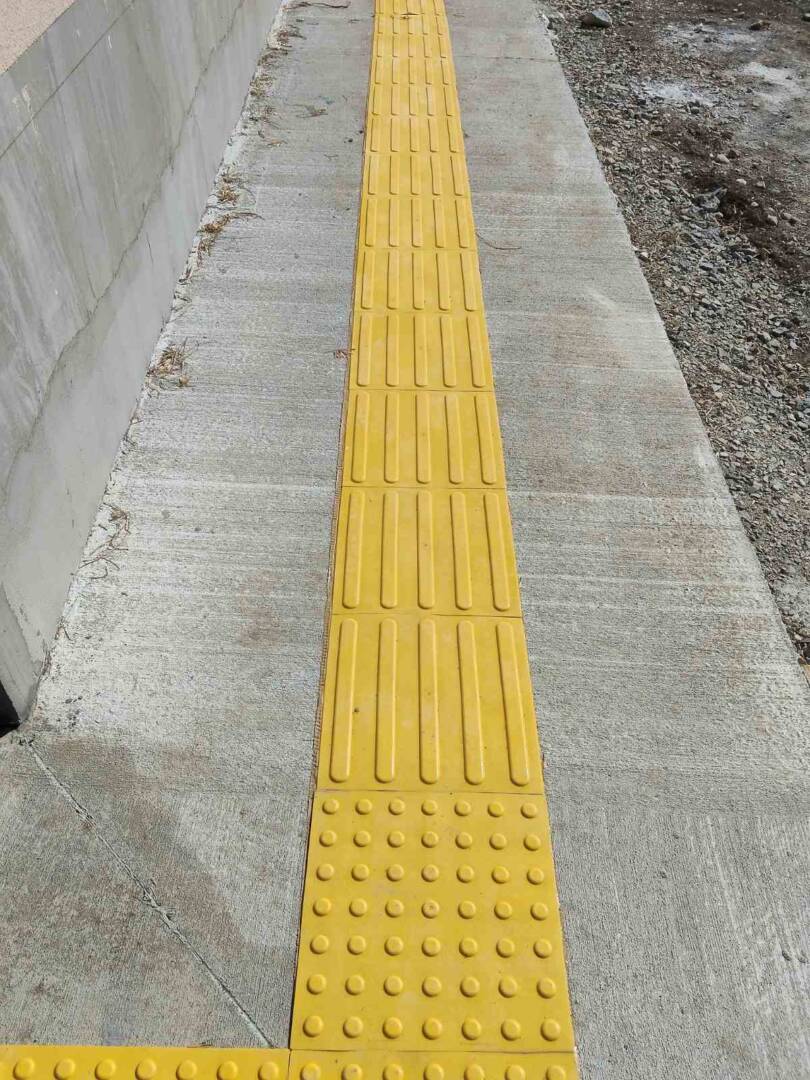

Yellow 40x40 cm tactile paving tiles installed along a concrete walkway.

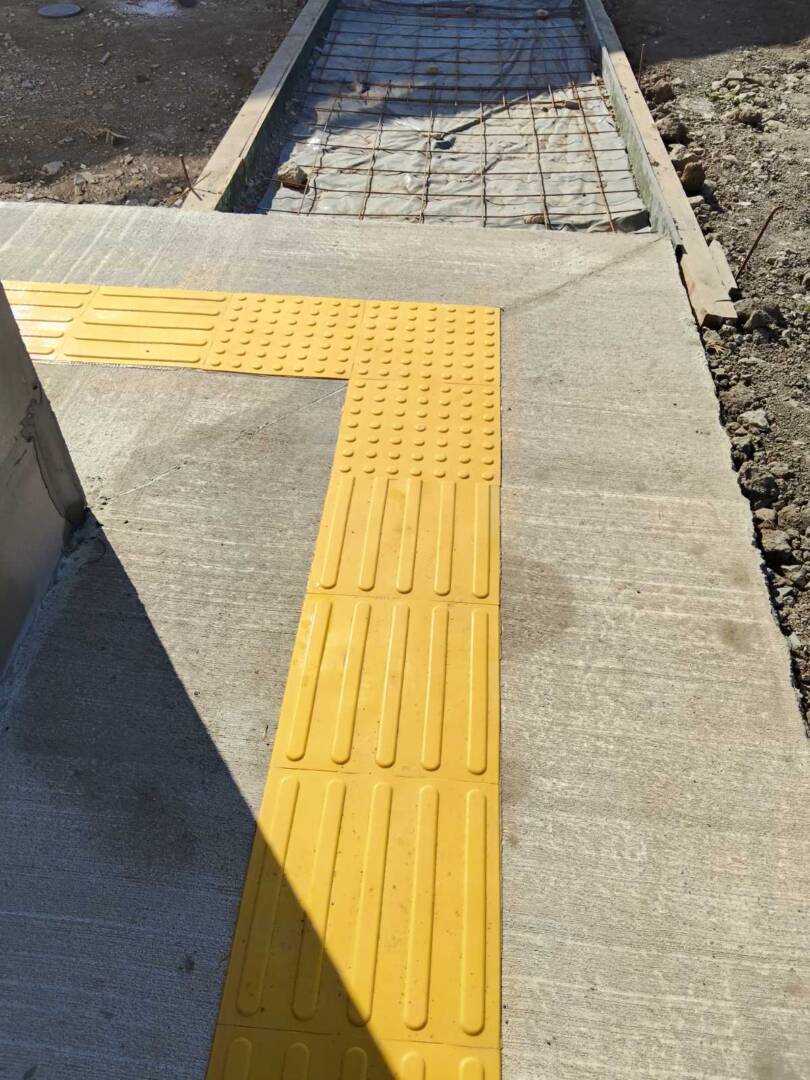

Yellow 40x40 cm tactile paving with guiding lines and a warning area.

Gluing and installation of yellow 40x40 cm tactile paving tiles on a concrete base with polyurethane adhesive.

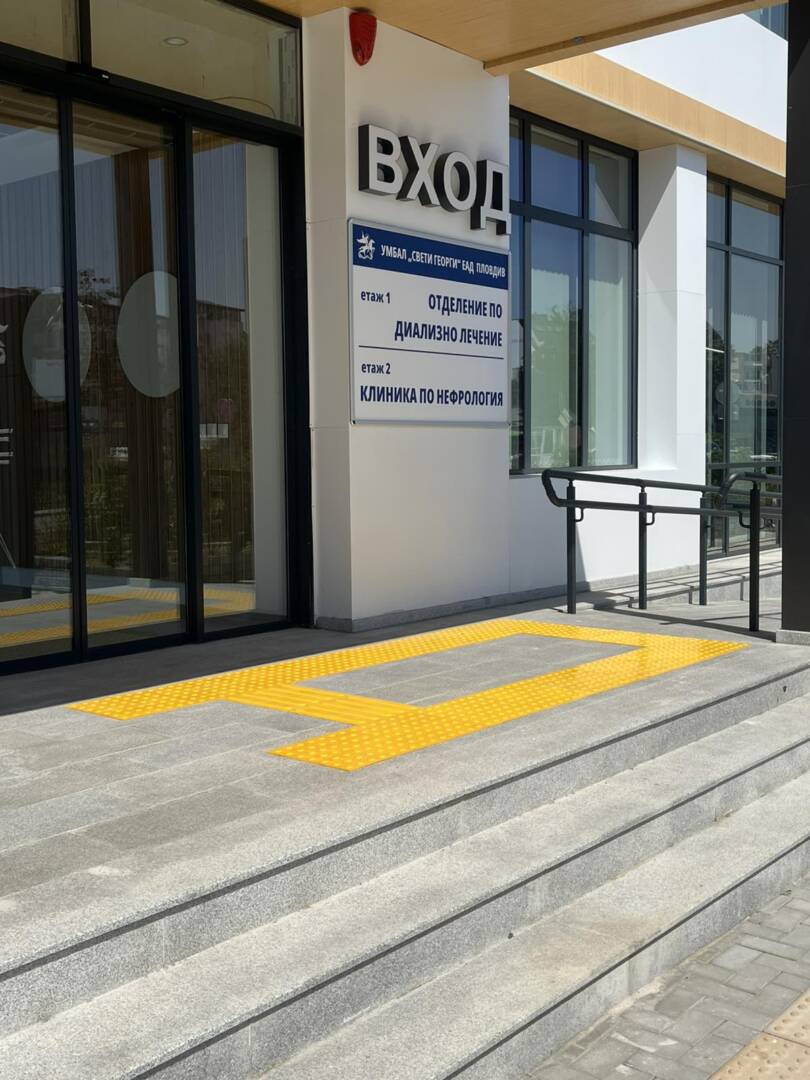

Yellow tactile paving with raised domes and a guiding strip on the outdoor platform in front of a hospital entrance.

Tactile Warning Paving Tiles 40×40 cm TPU

Name: Tactile Warning Paving Tiles 40x40 cm TPU
Brand: Терено Еко
SKU: 8853
Price: 6.90 EUR
Availability: InStock

Tactile warning paving tiles made from high-grade TPU ensure accessible and hazard-free walkways. The blister stud pattern immediately alerts visually impaired pedestrians to critical changes ahead. They effectively signal stairs, road crossings, pedestrian paths, and directional turns.

Price: €6.90 / pc excl. VAT

For complete navigation paths, combine warning zones with our tactile guiding strips.

Key Advantages of Tactile Warning Paving Tiles

Premium TPU Material: Offers extreme resistance to tearing, wear, and severe weather. It maintains flexibility and will not crack under freezing temperatures.
Maximum Safety: The textured raised domes provide slip resistance even during heavy rainfall.
Vibrant Visual Contrast: High-visibility yellow (RAL 1023) helps people with low vision detect hazard zones quickly.
Effortless Surface Mounting: Installs directly onto existing asphalt, concrete, or stone without demolition work.
Certified Standards: Meets accessible environment norms and undergoes testing per international standard ISO 23599:2019, with compliance confirmed by laboratory tests. Manufactured under a management system certified to ISO 9001:2015 and ISO 14001:2015

Technical Specifications

Material: High-grade thermoplastic polyurethane (TPU). Combines plastic rigidity with rubber elasticity for heavy foot traffic.
Dimensions: 400 x 400 mm.
Surface Profile: Tactile domes / blister studs for hazard warning and attention.
Thickness: 3 mm base tile + 5 mm tactile relief.
Coverage: 6.25 tiles per 1 m².
Color Options: Traffic Yellow (RAL 1023) for contrast. Graphite, black, or custom colors on request.
Durability: UV protection, antibacterial surface, temperature range from -40°C to +80°C.
Adhesive System: Fixed with two-component polyurethane adhesive for strong bond strength and long service life.
Compliance & Testing: Manufactured directly by Tereno Eco. Meets accessible environment norms and undergoes testing per international standard ISO 23599:2019, with compliance confirmed by laboratory tests. Manufactured under a management system certified to ISO 9001:2015 and ISO 14001:2015
Price: €6.90 / pc excl. VAT.
Installation Adhesive: Two-component polyurethane adhesive (consumption 1.2 – 1.5 kg/m²): €3.32 / kg.

Note: Standard pricing applies to in-stock colors. Contact us for bulk volume quotes or custom color specifications.

Technical Specifications

Material: High-grade Thermoplastic Polyurethane (TPU) with UV stabilization
Dimensions: 400 x 400 mm
Weight: 730 g ± 3 % per tile
Surface Profile: Blister studs / raised domes (Hazard Warning)
Thickness: 3 mm base + 5 mm tactile relief
Consumption: 6.25 tiles per m²
Color Options: Traffic Yellow (RAL 1023); graphite and black available on request
Thermal Stability: -40°C to +80°C
Fixing Method: Two-component polyurethane adhesive (1.2 – 1.5 kg/m²)
Compliance: Manufactured directly by Tereno Eco. Meets accessible environment norms and undergoes testing per international standard ISO 23599:2019, with compliance confirmed by laboratory tests. Manufactured under a management system certified to ISO 9001:2015 and ISO 14001:2015
Price: €6.90 / pc excl. VAT
